Infrared Touch Overlay
———

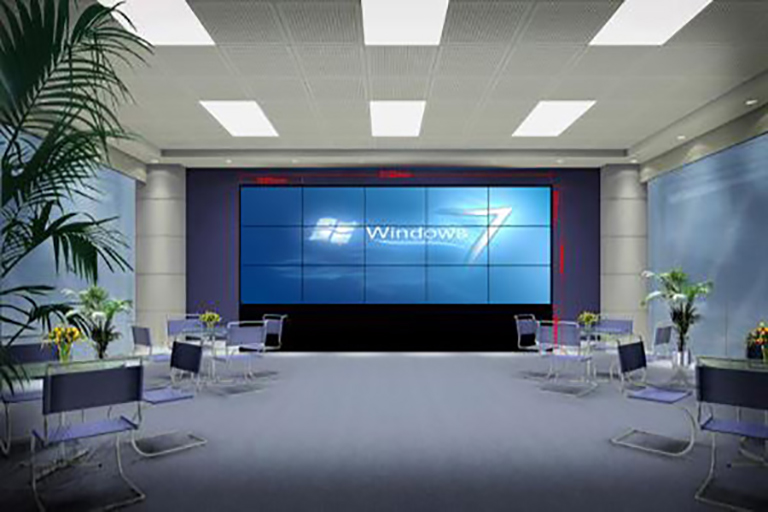

Support Multi-Display; High-end Multi-touch experience (truly support 2/4/6/ 10/12/16/32/40 simultaneous touch points); Strong ambient light immunity up to 150,000lux; Fast response; Support remote control and remote diagnosis; Easy Integration.
Touch Panel | |
Standard Size | >84” Customized upon special requests |
Dimension | 37.5mm width, 11.7mm thickness (with frame, without glass) |
Number of Touch Points | 2, 4, 6, 10, 12, 16, 32, 40 |
Minimum Touch Object | 5mm |
Touch Activation Force | No minimum touch pressure required |
Touch Durability | Unlimited |
DurabilityResolution | 32768*32768 |
Linearity Deviation | ±1mm |
Fault Tolerance | Workable even 75% sensors are damaged |
Frames per Second | Up to 200 fps |
Typical Response Time | 3-10ms |
Light Transmission | 100% without glass |
Operating Systems | Windows®7, Windows®8, Windows®10, Mac® OS, Linux, Android |
Protocols | HID, TUIO, Flash |
Re-development | Provide free SDK, support C/C++, C#, Java etc. |
Electrical | |
Power Supply | USB Connection |
Low Power Consumption | 5V max, 0.5~3A |
Per EN61000-4-21995; Level 4. | |
ESD | Contact Discharge 8kV, |
Air Discharge 15kV | |
15kV on USB Connector pins | |
Environment | |
Temperature | Operating Temperature: -20°C~70°C |
Storage Temperature: -40°C~85°C | |
Humidity | Operating Humidity: 10%~90%RH(Non-condensing) |
Storage Humidity: 10%~90%RH | |
Certification |
