Reset and recalibrate the Infrared Multi-Touch Overlay

1  Download the application

1-1 Download the application ZIP file from the following link, https://www.cynnn.com/?p=868
1-2 Unzip the file “CY-TouchSettingsV7.0_Win.zip” and run the app “CY-TouchSettingsV7.0_Win.exe”

2  Run calibration application

2-1 Connect the IR Touch Overlay to the computer, run the app ” “CYTouchSettingsV7.0_Win.exe”.

2-2 Click and select the Language.
2-3 Confirm that the application has found the touch screen overlay. (Product serial number will be displayed on the application)

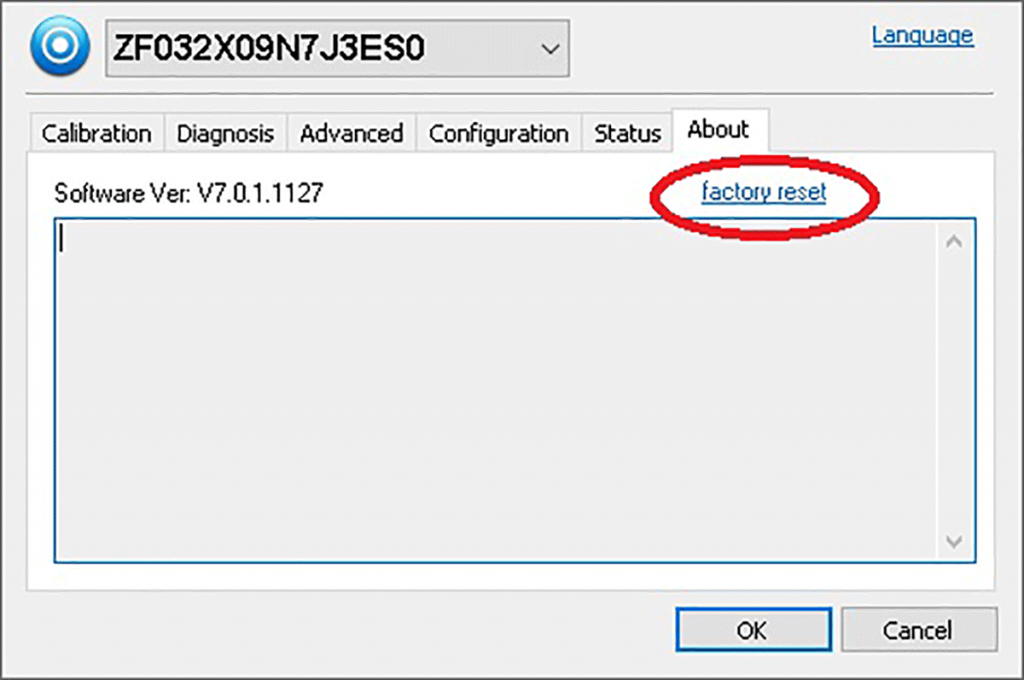

2-4 Click “About” page, and click “factory reset”.

2-5 Click “yes” to confirm the factory reset.

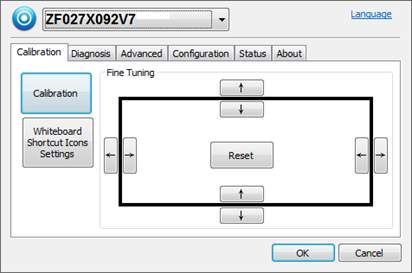

2-6 Go to page “Calibration”, Click “Calibration” to calibrate the IR Touch Overlay.

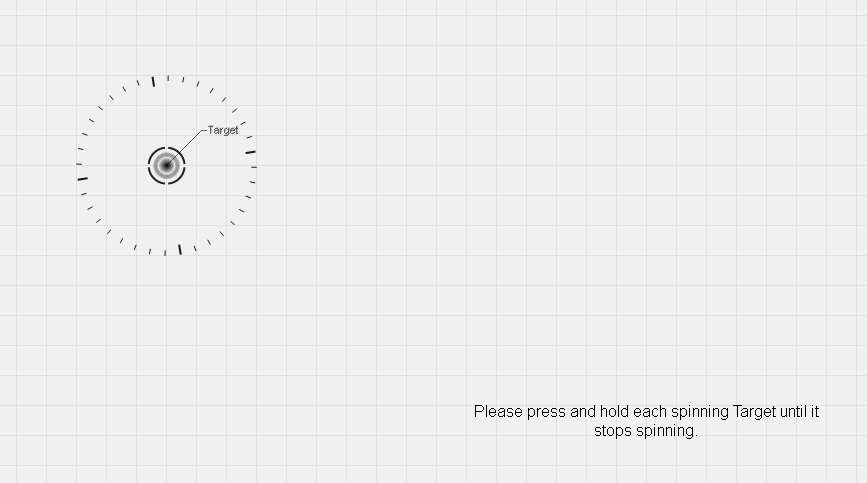

2-7 Press and hold on the target.
